Driven axle system BRA 130C

Specifications:Suitable for 12m~18m new energy buses

Return

Product Introduction

Features

  • 01. An axle with double reduction system provides a better torque and power capability than a single reduction axle, especially on new energy vehicles.

  • 02. Compact design and center input flange helps to optimize the weight districution.

  • 03. Optimized axle weight.

  • 04. Grinded high quality gears for achieving lower noise levels.


Specifications

Bus width (mm) 2,500~2,550
Max. axle load(kg) 13,000
Wheel travel (mm)±90
Max. output torque (Nm) 46,000
Ratio1)6.29
Tire size1) 275/70R 22.5 (Twin)
Rim size1)22.5”X 8.25”
BrakeDisk
Axle weight (kg)2) 1,025

Notes: 1) For other specifications, please contact GK.
            2) Axle weight includes oil, suspension arms, rods, air bellows and shock absorbers.

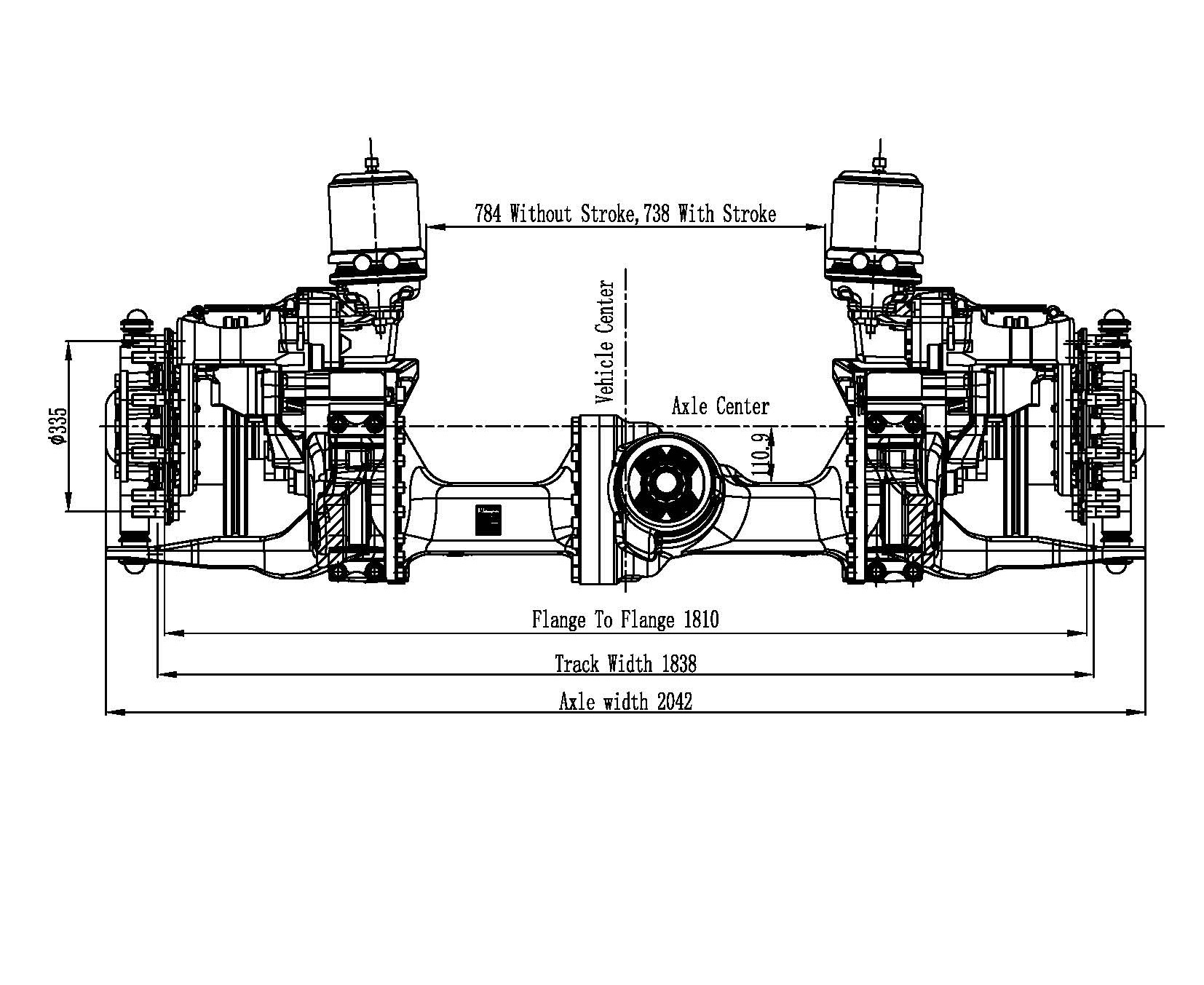

Installation dimensions



  • 01. An axle with double reduction system provides a better torque and power capability than a single reduction axle, especially on new energy vehicles.

  • 02. Compact design and center input flange helps to optimize the weight districution.

  • 03. Optimized axle weight.

  • 04. Grinded high quality gears for achieving lower noise levels.
